Truck Mounted Spreaders

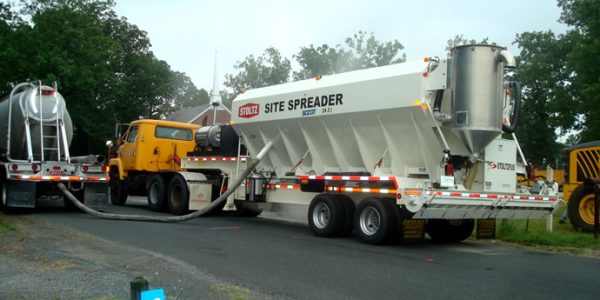

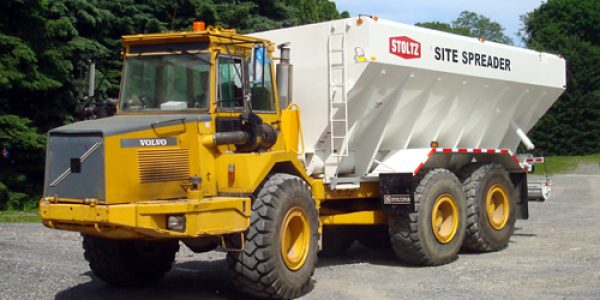

Stoltz Site Spreaders are designed for dust free loading and rapid, accurate spreading of low to high volumes of cementitious and pozzolanic materials such as cement, flyash, and quicklime. Standard truck bodies include a 15 ton (half tanker) body as well as two versions of our 27 ton (full tanker) body. Our international customers have a choice between our 15 ton truck body and a specially designed 27 ton body, both of which can be containerized for economical export.

Site Spreaders feature a hydraulically driven 30” wide conveyor chain that discharges into a spreading auger. The spreaders are configured with your choice of automatic or manual controllers, which govern the material discharge from the hopper. The spreading auger is then manually adjusted to achieve a level spread pattern.

Loading dust is controlled by your choice of a low maintenance pulse jet filter canister installed at the back of the truck, or low cost "pop-up filter bags" installed on the roof. You have the choice of mounting the body yourself, or we can mount it on your truck.

Note that in certain parts of the country Site Spreaders are also locally referred to as cement spreaders, bulk spreaders, vane spreaders, or simply as vane feeders.

  • full-tanker, 747 ft3 (21.15 m3) hopper (25 ton)
  • 15 or 27 ton capacity
  • Hydraulic body chain
  • Hydraulic spreading auger and rear metering gate
  • Custom fitted to your chassis (articulated or straight frame)
  • Pneumatic load with 4 in. [101.6 mm] camlock
  • 7 ga [127 mm] carbon-steel construction
  • 1/4 in. [6.35 mm] carbon-steel floor
  • 30 in [762 mm] slat style drag chain
  • Internal and external braces
  • Pressure relief
  • High efficiency pulse jet filter can
  • Choice of automatic or manual controller
  • Mounting on customer supplied chassis
  • PTO
  • Hydraulic pump
  • Hydraulic rear gate with indicator
  • DOT lights
  • Sealed, reinforced 7 gauge (4.55 mm) steel hopper
  • 4 in. (101.6 mm) Pneumatic fill pipe with camloc connector
  • 30 in. (762 mm) wide body chain using D667 (heavy duty)KC chains
  • Access panels along sides
  • Dust curtain around auger
  • All units sized to be 13 ft. 6 in. (4.11 m) (or less) when loaded onto a 24 in. (0.6m) dropdeck trailer

  • 8 ft. (2.5 m), 10 ft. (3.04 m) or 12 ft. wide, 9 in. (229 mm) diameter hydraulic spreading auger
  • Manway for top loading
  • Extra fill pipes
  • 5 in. [127 mm] diameter fill pipe
  • Left/right/center selectable auger
  • Bin level indicator
  • Special paint colors
  • Vibrators
  • Deduct for customer mounting
  • Digital Spreader Control Center with radar with on-site training in US
  • Rugged digital scales to monitor load
  • Diesel engine for high rate application at slow speed
  • Bag house with pulse jet cleaning
  • Custom sizes to fit containers for overseas shipment

  • Cement
  • Flyash
  • Quicklime
  • Hydrated lime
  • Lime Kiln Dust
  • Any dry, flowable powder
  • All dry binding agents
