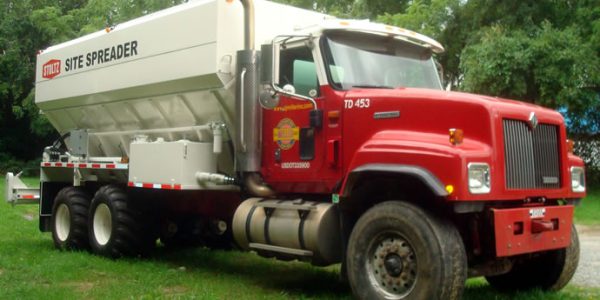

Custom Designed Spreaders

We recognize that there are times when you have unique needs that standard equipment will not meet. Please give us a call to discuss your particular requirements.

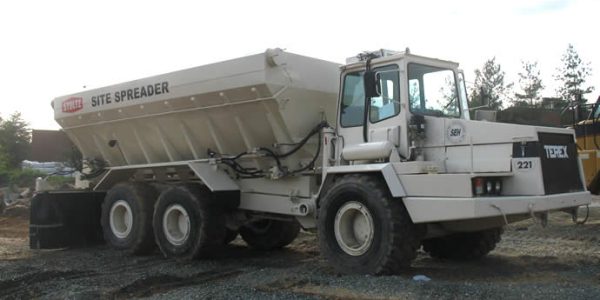

Customers commonly ask us to custom build hoppers for specific trucks, especially articulating dump trucks. Other special requirements may include hopper access ports, lifting mechanisms on the spreading auger, replacing the conveyor chain with a dual auger design, special fill pipes, fill level sensors, special spreading auger widths, or pusher bars on the backs of trucks.

  • Sealed, reinforced 7 gauge (4.55 mm) steel hopper
  • 4 in. (101.6 mm) Pneumatic fill pipe with camloc connector
  • Hydraulic spreading auger and rear metering gate
  • 30 in. (762 mm) wide body chain using D667 (heavy duty)KC chains
  • Access panels along sides
  • High-capacity filter tank to clean fill air
  • Dust curtain around auger
  • Bag house with pulse jet cleaning
  • All units sized to be 13 ft. 6 in. (4.11 m) (or less) when loaded onto a 24 in. (0.6m) dropdeck trailer

  • Special hopper sizes
  • Special fill pipes
  • Bin level indicator
  • Dual Auger conveyor design
  • Special spreading auger widths
  • Air fluidizer/vibrators
  • 8 ft. (2.5 m), 10 ft. (3.04 m) or 12 ft. wide, 9 in. (229 mm) diameter hydraulic spreading auger
  • Digital Spreader Control Center with radar with on-site training in US
  • Rugged digital scales to monitor load
  • Diesel engine for high rate application at slow speed
  • Custom sizes to fit containers for overseas shipment

  • Cement
  • Flyash
  • Quicklime
  • Hydrated lime
  • Lime Kiln Dust
  • Any dry, flowable powder
  • All dry binding agents
